EKX-22

In Stock
Highlights:

Applicable for 8-9 Meter Electrical Drive Bus AC system.

Description

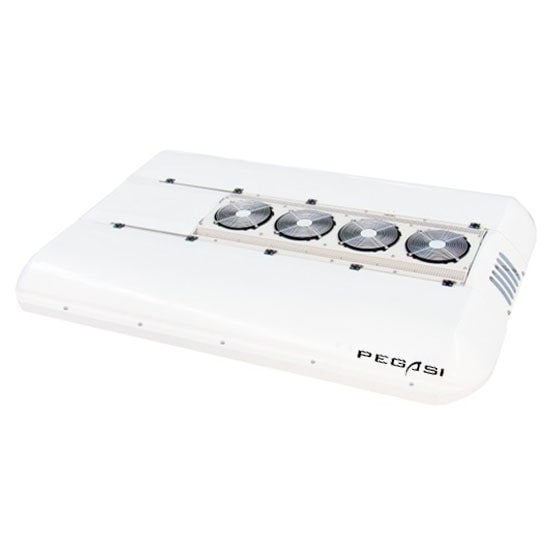

All Electric Roof Mount Bus Air Conditioning

Model EKX-22
Application L8m ~ 8.5m
Cooling features
Cooling capacity 18KW/15,000Kcal/59,510Btu/h
Outdoor air parameter 35℃
Indoor air parameter 27℃, relative humidity 60%
Voltage DC24V
Chassis voltage DC320V~DC750V
Inpput power ≤6.5KW
Refrigerant R407c
Compressor/Displacement Panasonic/55.7cc
Condensor
Micro channel
4 x fan motors
Evaporator Internally grooved copper tubing with aluminum fins
Airflow
4 x fan motors
Hi:4400m3/h
Expansion valve Danfoss
Safety device
HP HP:3.2MPa
LP LP:0.18MPa
Exhaust temp. protection 115℃
Temperature control system Third gear wind speed control
Overall dimension 2497*1922*307mm
Weight 285KG
Standard mdoel with cooling only, heating function is optional
