EKX-30

In Stock
Highlights:

Applicable for 9-10 Meter Electrical Drive Bus AC system.

Description

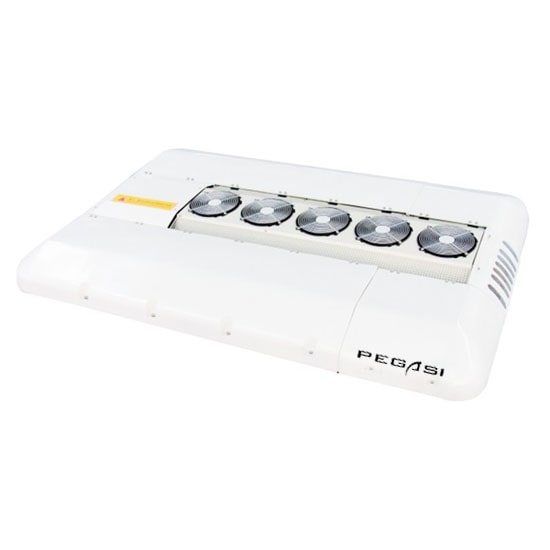

All Electric Roof Mount Bus Air Conditioning

Model EKX-30
Application L10m
Cooling features
Cooling capacity 22KW/19,000Kcal/75,380Btu/h
Outdoor air parameter 35℃
Indoor air parameter 27℃, relative humidity 60%
Voltage DC24V
Chassis voltage DC320V~DC750V
Inpput power ≤10KW
Refrigerant R407c
Compressor/Displacement Panasonic/74.4cc
Condensor
Micro channel
5 x fan motors
Evaporator Internally grooved copper tubing with aluminum fins
Airflow
6 x fan motors
Hi:6600m3/h
Expansion valve Danfoss
Safety device
HP HP:3.2MPa
LP LP:0.18MPa
Exhaust temp. protection 115℃
Temperature control system Third gear wind speed control
Overall dimension 3109*1920*307mm
Weight 335KG
Standard mdoel with cooling only, heating function is optional
